Van Beest G-4163 Bolt Type Anchor Shackle Green Pin

Price
$23.00
Taxes and shipping calculated at checkout
Size & WLL: 1/2" – 2 Ton WLL
SKU: VBBT12

Frequently Bought Together

Free US Continental Shipping over $75

Item cannot be returned due to safety concerns

Netherlands

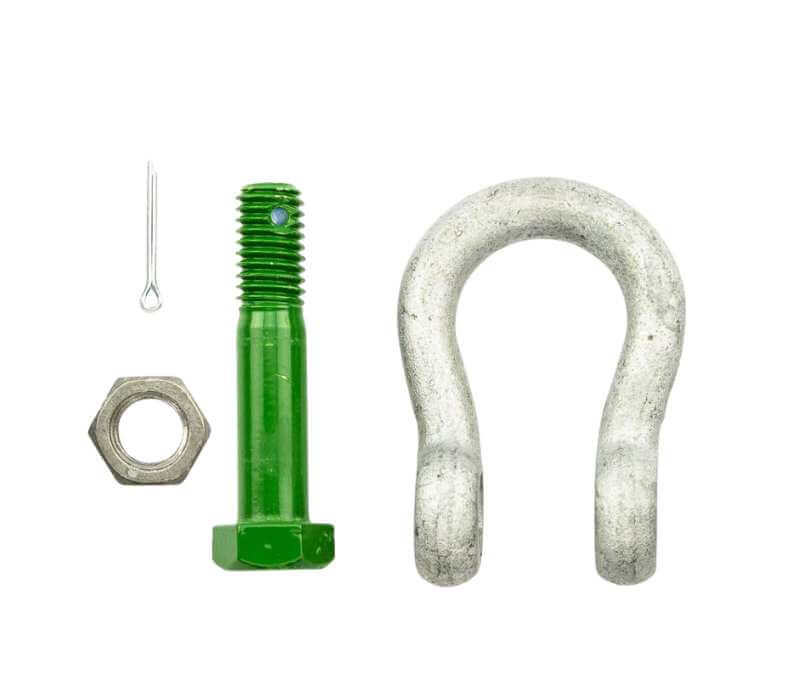

    Van Beest Bow Shackles are known for their High Quality!  Identified by their trademark Green Pin these standard bow shackles with safety bolt are made in Netherlands.

      • Size: From 1/2" to 1-3/4"
      • Shackle Type: G-4163 Standard bow shackle with Safety Bolt
      • Finish: Hot dipped galvanized - Quenched and Tempered
      • Safety Factor : MBL equals 6 x WLL
      • Temperature Range : -20°C up to +200°C
      • Standard : EN 13889 and meets performance requirements of US Fed. Spec. RR-C-271 Type IVA Class 3, Grade A
      Shackles cannot be returned due to safety concerns.

      Safety Note:  Never use products beyond their working load limits.  Make sure to always inspect products before use.

        Van Beest G-4163 Shackle Bolt Type Green Pin Specifications

        Van Beest G-4163 Shackle Bolt Type Green Pin Specifications

        Instructions for use


        Select the correct type and WLL of the shackle for the particular application. If extreme circumstances or shock loading may occur, this must be taken into account when selecting the correct shackle. Please note that commercial shackles are not to be used for lifting applications.

        Shackles should be inspected before use to ensure that:
        * all markings are legible;

        * the body and pin are both of the same brand and type;

        * the body and pin are both of the correct size;

        * never use a safety bolt type shackle without using a securing pin;

        * the pin, nut, cotter pin, or any other locking system cannot vibrate out of position;

        * the threads of the pin and the body are undamaged;

        * the body and the pin are not distorted or unduly worn;

        * the body and pin are free from nicks, gouges, cracks and corrosion;

        * shackles may not be heat treated as this may affect their WLL;

        * never modify, repair or reshape a shackle by machining, welding, heating or bending as this will affect
the WLL.
